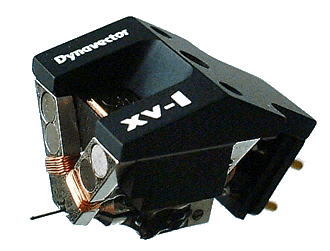

Dynavector XV-1s


Dynavector MC Tonabnehmer
Dynavector XV-1S

Type: Low output moving coil cartridge with multi Alnico magnets and the Flux damper

Output Voltage: 0.3mV (at 1KHz, 5cm/sec.)

Channel Separation: 30 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 - 20,000Hz (± 1dB)

Compliance: 10 mm/N

Tracking force: 1.8 - 2.2 g

Impedance: R=6 ohms, L=18 micro Henry

Recommended load impedance: > 30 ohms

Cantilever: 6mm length 0.3 mm dia. solid boron with a special armaturer

Stylus tip: PF Line contact shape, stylus radius: 7 x 30 micron

Weight: 12.6 g
