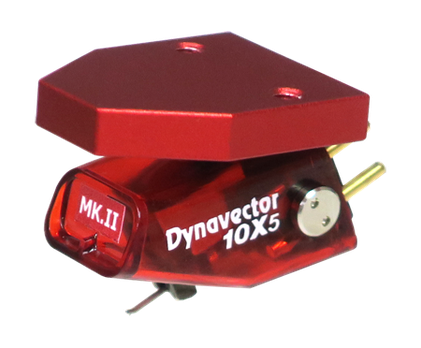

DV-10X5 MKII


Type: High output moving coil cartridge with flux damper and softened magnetism

Output Voltage: 2.8mV (at 1KHz, 5cm/sec.)

Channel Separation: 25 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 - 20,000Hz (± 2dB)

Compliance: 12 mm/N

Tracking force: 1.8 - 2.2 g

Impedance: 150 ohms

Recommended load impedance: > 1000 ohms

Cantilever: 6mm length hardened aluminium pipe

Stylus tip: Nude Diamond "Shibata III" Line Contact

Weight: 7.5 g
