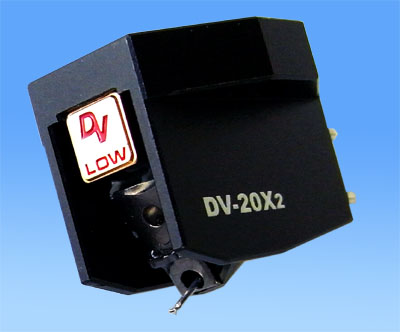

DV-20X2 H/L


Type: High/Low output moving coil cartridge with flux damper and softened magnetism

Output Voltage: 2.8mV / 0.3mV (at 1KHz, 5cm/sec.)

Channel Separation: 25 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 - 20,000Hz (± 1dB)

Compliance: 12 mm/N

Tracking force: 1.8 - 2.2 g

Impedance: 150 ohms / 5 ohms

Recommended load impedance: > 1,000 ohms / > 30 ohms

Cantilever: 6mm length, hard aluminium pipe

Stylus tip: Micro Ridge Nude diamond

Weight: 9.2 g
