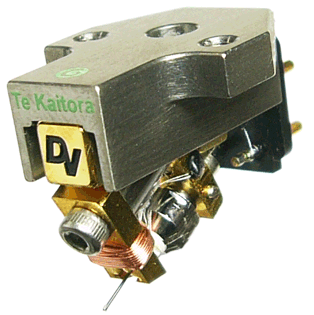

TE KAITORA RUA


Type: low output moving coil cartridge with flux damper and alnico magnet

Output Voltage: 0.26mV (at 1KHz, 5cm/sec.)

Channel Separation: 30 dB (at 1KHz)

Channel balance: 1.0 dB (at 1KHz)

Frequency response: 20 - 20,000Hz (± 1dB)

Compliance: 10 mm/N

Tracking force: 1.8 - 2.2 g

Impedance: 6 ohms

Recommended load impedance: > 30 ohms

Cantilever: 6mm length solid boron

Stylus tip: PF Line contact shape, stylus radius: 7 x 30 micron

Weight: 9.8 g
